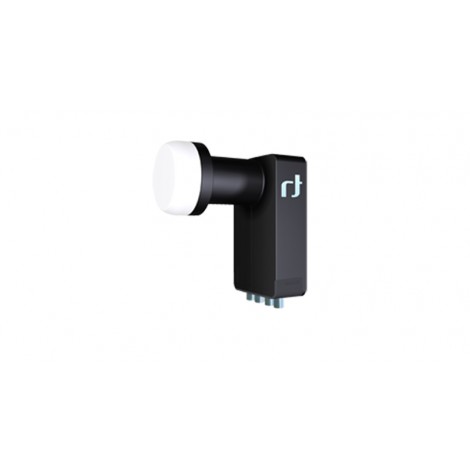

Inverto Black Ultra Quattro HGLN 40mm LNB

  • Inverto Black Ultra Quattro HGLN 40mm LNB
  • VAR

Inverto Black Ultra Quattro HGLN 40mm LNB

327,25

Inverto Black Ultra Quattro HGLN 40mm LNB



IDLB-QUTL40-ULTRA-OPP

  • Superior Phase Noise Performance, DVB-S2 (HDTV) compliant
  • Superior Noise Figure
  • Extremely high Cross Polarization Isolation
  • Very low Spurious Levels
  • Higher Conversion Gain
  • Ultimate Reliability
Low Band Input Frequency Range
10.7 ~ 11.7 GHz
Low Band Output Frequency Range
950 ~ 1950 MHz
Low Band LO Frequency
9.75 GHz
High Band Input Frequency Range
11.7 ~ 12.75 GHz
High Band Output Frequency Range
1100 ~ 2150 MHz
High Band LO Frequency
10.6 GHz
Noise Figure
0.2 dB Typ. (0.7 dB Max.)
LO Initial Accuracy
+/- 1.0 MHz Max.
LO Temperature Drift
+/- 3.0 MHz Max.
Phase Noise (@ 10 kHz)
– 90 dBc / Hz Max.
Conversion Gain
60 dB Min.
Gain Ripple (Over 26 MHz Bandwidth)
+/- 0.75 dB
Gain Variation (Over Full Band)
+/- 4 dB Max.
Image Rejection
40 dB Min.
1 dB Compression Point (@ Output)
0.0 dBm Min.
Cross Polarization Isolation
22 dB Min.
Output VSWR
2.0 : 1
In-Band Spurious
– 60 dBm Max.
Current Consumption
200 mA Max. @ 11 ~ 20 V
Operating Temperature
– 30 °C ~ + 60 °C
Output Impedance
75 Ω
Output Connector
F-Type (Female)
Weight
344 g
