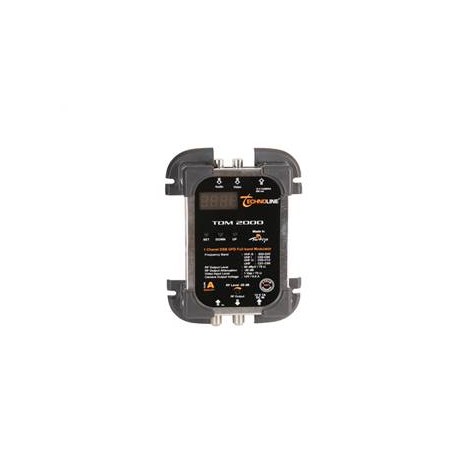

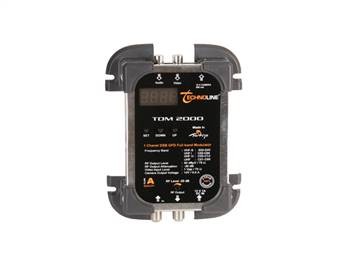

Technoline TDM 2000 RF Modulator
SINGLE CHANNEL AV MODULATOR DISPLAY SCREEN CONTROL DSB MP
AGILE'''' FULL BAND
Central Release (SMATV) systems or similar systems, CCTV security cameras,CD / DVD players, information systems or electronic devices such as computerscontaining sound and images produced by adding channels to the sound and video (AV), VHF, S-Band and a pair of side-band modulator UHF channels to TV standard.
Can be used with all of TV broadcasting band feature provides flexibility in multi-channel broadcasting system applications. We also have a 12V DC power outputis short circuit protected with security cameras, CD / DVD players and similar electronic devices, providing the strength necessary to meet the need for external power adapter. Thanks to working in the voltage range from 90-240 VAC power supply SMPS suitable for all network types and conditions.
TECHNICAL SPECIFICATIONS
BANDWIDTH [VHF-S S02-S40] [VHF C05-C12]
(Full Band 119-850 MHz) [UHF C21-69]
Video Input Level 0.8 to 1 0.2 Vpp
88 dBuV RF OUTPUT LEVEL
RF OUTPUT -20 dB attenuation
TV Standard PAL-BG
RF INPUT OUTPUT CONNECTOR F-Typ
POWER SUPPLY 220 Vac - 12 Vdc - 1A
CAMERA OUTPUT VOLTAGE 12 Vdc - 500 mA
DIMENSIONS 128x85x30
WEIGHT 320 Gr.
