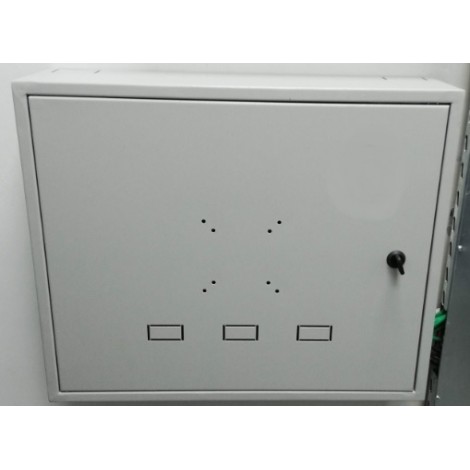

2 SAT IN 32 S2 TP OUT HOTEL TV FULL HD COMPACT SYSTEM
2 SAT IN 32 S2 TP OUT HOTEL TV FULL HD COMPACT SYSTEM
ONE CABLE TECHNOLOGY
| Inputs | 2 x Satellite IF inputs from LNB |
| 1 x UHF/VHF input from Terrestrial antenna | |
| Outputs | 4 x loopthrough satellite IF outputs |
| 1 x loopthrough terrestrial output | |
| 1 x Legacy output with combined terrestrial signal. | |
| 1 x Output with up to 32 User TP with combined terrestrial signal | |
| Control Protocol | DiSEqC1.x/DiSEqC2.0, EN50494/EN50607 |
| Inputs frequency range: Satellite | 950 ~ 2150 MHz |
| Terrestrial | 47 ~ 862 MHz |
| Loop-through loss: Satellite | 3 dB max. |
| Terrestrial | 3 dB max. |
| Conversion gain: Unicable output | 25dB min |
| Legacy universal output | -1 to +7 dB |
| Output signal level (AGC controlled) | Configurable (default -25dBm) |
| Input power range | -50 to -15 dBm |
| User band (Channel) bandwidth | Configurable, 10~80MHz (default 30MHz) |
| User band (Channel) gain ripple | 3 dB max. |
