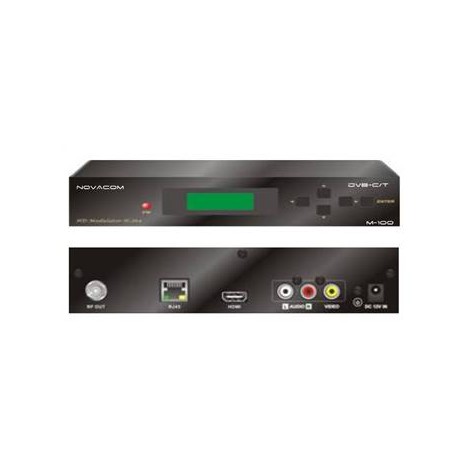

Novacom DVB-C/T2 Qam Modülator

  • Novacom DVB-C/T2 Qam Modülator
  • TÜKENDİ

17.500,00

Bir video kaynağını HD olarak DVB-C yada DVB-T sinyale dönüştürmek için kullanılır.

HDMİ giriş

Video ve Audio giriş.



OVERVIEW


 High Technology Integration of HD Encoder plus COFDM/QAM/ATSC/DTMB Modulator
 1080p Full HD supported, and HD/SD ready for digital TV sets and CCtV security
 Ready to consolidate or combine existing or new RF coaxial cabling
 Compatible with any terrestrial/cable tuner ready digital TV set/box


Features


 Support H.264 and main video resolutions 1080p,720p,480i
 HDMI and CVBS input available for HD and SD encoding
 Front plate LCD to read channel status
 PMT, Video/Audio PID, Service/Network Name programmable
 Friendly configuration & management control through front panel or software
 Low electricity power consumption for eco-friendly



Specifications



VIDEO INPUT


HDMI
Single-link HDMI 1.4, Compliant with HDMI 1.3, HDCP 1.4 and DVI 1.0, Integrated pre-programmed HDCP keys (optional)
Composite Video
(CVBS) RCA type, 75 Ohms


Audio Input


R、L Analog Audio
Physical Connections / RCA 12K Ohms
Input Level : Max. 1Vrms(2.828Vp-p)
HDMI / Stereo
MPEG Audio


Video Encoder


Video Encoding
H. 264 / AVC, Support Baseline profile, from level 1.0~ 4.0 up to 1080p@30fps, 1920×1080 full HD resolution
Video Encoding Data Rates
Variable
Color Profile
4:2:0


Modulation


Modulation Type (optional) DVB-T COFDM /DTMB or DVB-C QAM Annex A/B
Constellation 64QAM for DVB-T COFDM/DTMB/ATSC
64/256QAM for DVB-C
FEC Code Rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/4, 1/8, 1/16, 1/32
Bandwidth 6/7/8 MHz
FFT Mode 2K, 8K


RF Output

  Output Power +95 dBuV with 30dB adjustment
  Cable Standard NTSC, PAL-B/G/D/K /I
  Frequency Range 47 – 860 MHz
  Frequency Stability ± 10KHZ
  MER 34 dB typical
  Spurious 55 dB min
  Symbol Rate 4.1 ~ 7.0Msps
  Phase Noise 1k ≧ 70 dBc/HZ ; 10k ≧ 80 dBc/HZ ; 100k ≧ 90 dBc/HZ
  Connector F type female, 75 Ohms

Control/Setup

  Network interface 10M Ethernet via RJ45 connection
General
  Power Supply 100-240V AC, 50/60Hz, DC 12V / 2A
  Packing 1 Piece/Inner Box; 8 pcs/Carton/14Kgs/2.24cuft
